Don't have a place to hang your grow lights? Build this sturdy, adjustable stand in 30 minutes with no power tools.

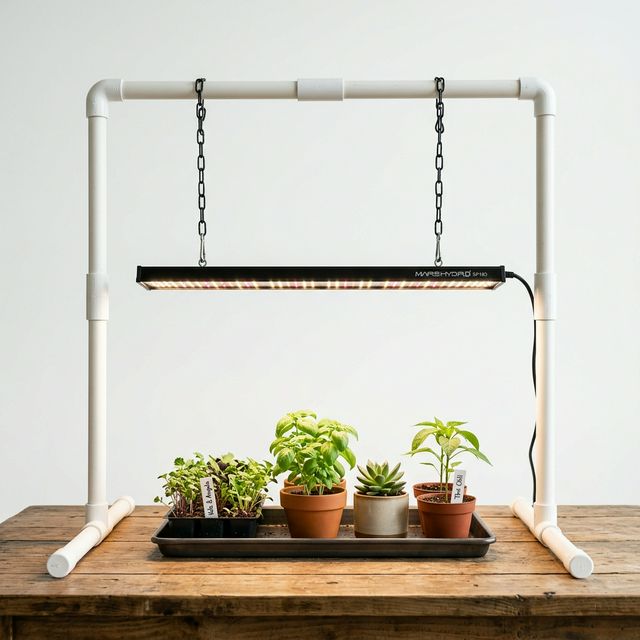

One of the biggest challenges for indoor gardeners is suspension. You can't always drill holes in the ceiling. This PVC stand sits on a table or floor and holds your shop lights or LED panels perfectly.
Materials List
- (2) 10-foot lengths of 3/4" PVC pipe
- (4) 3/4" Elbow fittings
- (4) 3/4" T-fittings
- (4) 3/4" End caps (optional, for feet)
Cut List
Many hardware stores will cut this for you, or use a cheap handsaw.
- Legs: (4) 12-inch pieces
- Feet sections: (4) 6-inch pieces
- Vertical risers: (2) 24-inch or 36-inch pieces (depending on height needs)
- Top Bar: (1) 48-inch piece (matches standard shop light width)
Assembly Tips for a Sturdier Stand
While PVC is "plug and play," a few professional tips will prevent your stand from wobbling or sagging under the weight of heavy LED panels:
- Measurement Precision: Use a miter box if you have one. If your vertical risers are even 1/8th of an inch different in height, the top bar will slant, causing your lights to hang unevenly.
- Dry Fit First: Never apply PVC cement (glue) until you have assembled the entire stand and verified it sits level on your chosen surface.
- To Glue or Not to Glue? For most indoor gardening needs, the friction of the fittings is enough to hold the stand together. Leaving it unglued allows you to break it down for storage in the off-season. However, if you have curious pets or children, a small dab of clear PVC cement on the base fittings is a smart safety move.
4. Troubleshooting Common Build Issues
The "Top Bar Sag"
If you are using a 4-foot shop light, a single 3/4" PVC pipe might slightly bow in the middle over time. The Fix: Slide a 1/2" wooden dowel or a piece of 1/2" rebar inside the top PVC pipe before assembly. This adds incredible structural rigidity without increasing the external footprint.
Wobbly Feet
If your stand rocks back and forth, one of your "feet" sections is likely slightly longer than the others. The Fix: Instead of re-cutting, you can simply rotate the T-fittings slightly until all four end-caps make solid contact with the floor. PVC is forgiving!
Pro Strategy: Adjustable Height
As your plants grow, you need to raise your lights to prevent leaf burn. Instead of using complex pulley systems, simply keep a set of 6-inch, 12-inch, and 24-inch "riser" pipes. You can swap them out in seconds to adjust the height of the entire frame as your tomatoes climb toward the ceiling.
Customization Options
The beauty of this design is its modularity. Here are three ways to level up your build:
- The "Double Decker": Add another set of T-fittings halfway up the vertical risers to create a second shelf for seed starting trays.
- Spray Paint for Aesthetics: Pure white PVC can look a bit "industrial." A quick coat of matte black or forest green spray paint (specifically labeled for plastic) transforms this into a piece of premium furniture.
- Casters: You can buy PVC-compatible wheels that fit directly into 3/4" end caps. This allows you to roll your garden toward the window during the day and back into the corner at night.
Safety First: Weight Limits
While 3/4" PVC is strong, it is not indestructible. Avoid hanging heavy glass fixtures or large ballasts directly from the center of a 4-foot span. If you notice the pipe bowing more than half an inch, it's time to add a center support riser or upgrade the top bar to 1" PVC. Always ensure your power cords are zip-tied to the vertical risers to prevent "cord-trip" accidents that could pull the whole stand down.
Expansion Tip: The Modular Future
One of the best things about PVC is that it is modular. If you decide to double your garden next year, you don't need to build a new stand. Simply replace your 4-way connectors with 5-way "side outlet" tees and add another level. You can even add horizontal rails for hanging seed-starting trays or a small fan for better airflow. Your stand can grow as your skills do.
Evaluating Light Weight and Compatibility
When selecting lights for your new PVC stand, consider the weight and heat output. Heavy, daisy-chained LED units may require you to switch entirely from 3/4-inch PVC to 1-inch or 1.5-inch PVC for the structural integrity of the top bar. Keep in mind that PVC can deform or soften if it is exposed to extended periods of excessive heat. If your grow lights have hot ballasts, ensure there is at least a 6-inch gap between the heat sink of the light and the PVC pipe itself.
Alternative Configurations: A-Frame vs. Square
While the standard rectangular "goalpost" design is excellent for simple setups, some advanced growers prefer an A-Frame setup. An A-Frame is built by connecting several sets of 45-degree angle fittings to create a wider base that tapers to a single hanging pole at the very top. This configuration uses more floor space but provides exceptional horizontal stability, which is vital if you are hanging oscillating fans alongside your lights.
Maintenance and Long-Term Care
PVC does degrade slowly over years when subjected to intense UV light. If you are using strong supplemental UV-B or UV-A fixtures, keep an eye on the PVC frame for signs of yellowing or brittleness. A quick wipe-down with a damp cloth every month removes accumulated dust, which otherwise might breed microscopic pests.
Conclusion
Building your own gear is the first step toward becoming a master urban gardener. It saves money, reduces waste, and allows you to customize your setup to your specific apartment layout. This PVC stand is a rite of passage for every indoor grower—once you build one, you'll never look at a hardware store the same way again.
